PBM910J1900

Features& Benefits

Flat-surface touch design
 Multi Touch
Detachable the hard disk installation
Convenient the unification of the operating system installation;
Optimize arrangement of connecting wire
 Reasonable wiring way, can keep tidy desktop

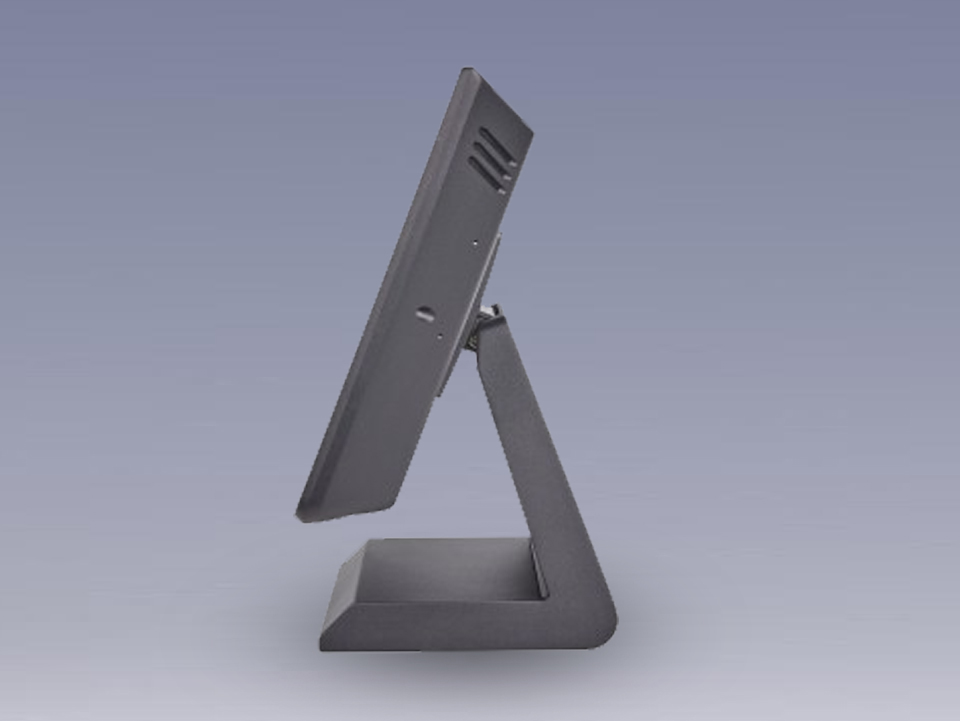

Multi-angle Tilting ranging from 0-90 degree with dual – shaft
Better view for the user and good combination to the interface.
 Available to fold up to save room for transporting.

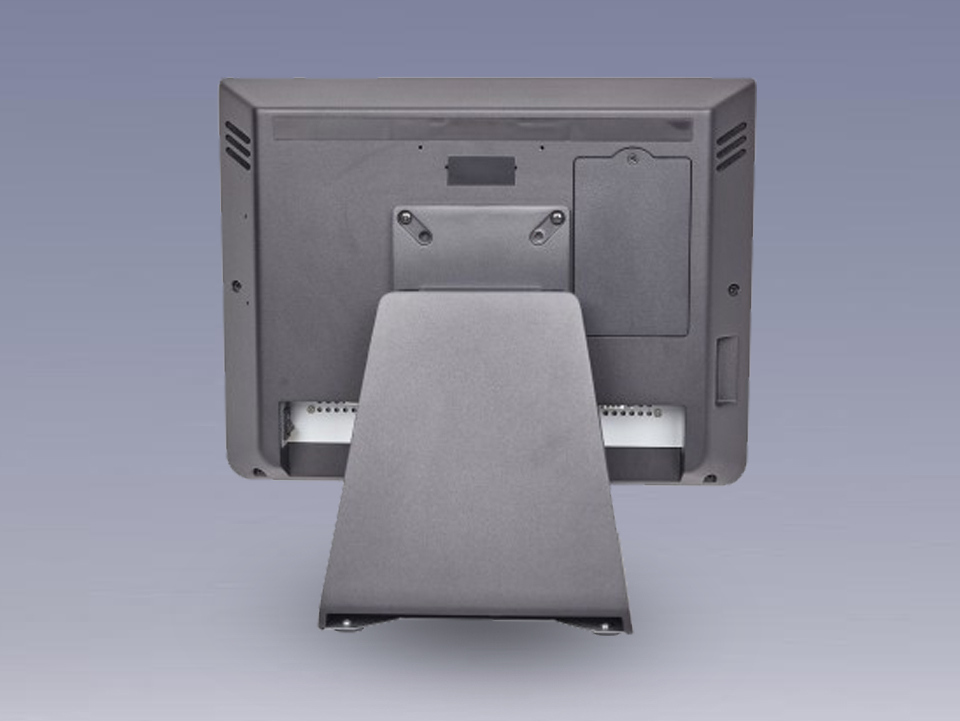

75 * 75 (100 * 100) VESA wall-mount supporting
Available to hang on wall for special working environments.
Obverse side waterproof and dustproof IP6/5
Effectively improve reliability and prevent premature failure.
Selectable and upgradeable Ports
Retailers can use existing devices and add new devices to meeting changing business needs


Specifications

Model name
910J1900
Type
15”All In One Touch POS terminal
Colour
Black
Material
Magaluma
Optional Peripherals(extra charge)

ISO Trick 1/2/3 Magnetic Stripe Reader

Customer Display: VFD

Second Screen(9.7”,12”,15”)

Wireless

BT

Support Windows OS
(7 up)
Main Board
ITX-J1900
CPU
Intel® Celeron® Processor J1900
BIOS
AMI BIOS
RAM Support
DDR3L  1333 4GB,
Storage
SSD 64G
Network Support
Realtek 8111E Gigabit Ethernet
Audio
Realtek  ALC662 HD
LCD Size
15”  LED-LCD

View Angle


left/right     +80°~-80°

up/down    +70°~-70°

Brightness
450cd /㎡
Resolution
XGA 1024×768 @ 60Hz
Touch Screen Type
Capacitive Touch Screen (Glass and Glass)
I/O port

DC IN*1

POWER BUTTON*1

COM*2

USB2.0*3

 LAN*1

USB3.0*1

LINE*1

MIC*1

DC OUT*1

Power LED*1

Operating Temperature
0 ℃ to 40℃
Storage Temperature
-20℃ to 60℃
SIZE
  460*250*410mm
Package:

carton box with Foam packaging

NW: 6.46KG

GW: 8.1KG

Power Consumption
35W(MAX)
EMC/ Product Safety
FCC Class A / CE Mark / LVD / CCC
OS support
Windows 7 or up, linux.  Not support Android

Accessory

Power adaptor, power cable, CD for driver

Note: this specification is based on the description of the parameters. If there is any change, just consult your supplier for details.
